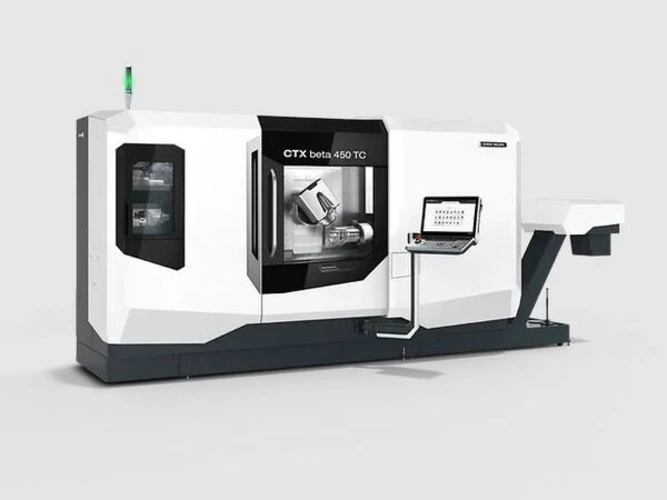

DMG MORI CTX 450 beta TC
0 EUR
General information
| 12.02.2025 |
| 101277 |
Search criteria
| 500 mm |
| 1100 mm |
| 400 mm |
| 102 mm |
| ja |
| ja |
| ja |
|
|
| DMG MORI Aktiengesellschaft |
further specifications
| 750 mm |
| 200 mm |
| 1100 mm |
| 15.000 rpm |
| 60 Items |
| 80 mm |
| 400 mm |
|
| 2395 mm |
| 5799 mm |
| 2600 mm |
| 10 t |
Contact us
Report ad
Description
Maximum rigidity, comprehensive cooling measures as well as 5-axis simultaneous machining and process integration such as grinding or gear manufacturing: The CTX beta 450 TC offers complete 6-sided machining with maximum precision and dynamics.
The additional magazine for 120 tools, for expanding its capacity to up to 200 tools, and the flexible Robo2Go can be easily retrofitted.
Highlights
- 500 mm max. turning diameter, 1,100 mm turning lenght
- Only 350 mm long: compactMASTER spindle with 15,000 rpm
- 5-in-1 process integration: turning, milling, grinding, gear manufacturing, measuring
Operating convenience

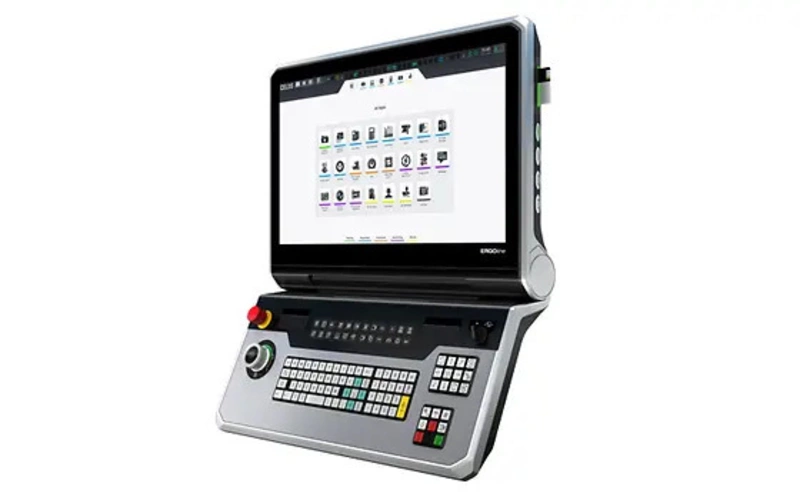

New control generation with innovative functions for simpler and up to 80 % faster programming
Efficiency
Increased efficiency through consistent reduction of energy consumption, intelligent control and reduction of non-productive times
Technology
5-axis simultaneous machining and 5-in-1 process integration for 6-sided complete machining
Automation
Comprehensive automation - with tool loading parallel to machining time, integrated portal for workpiece automation or our flexible Robo2Go
Technology in detail

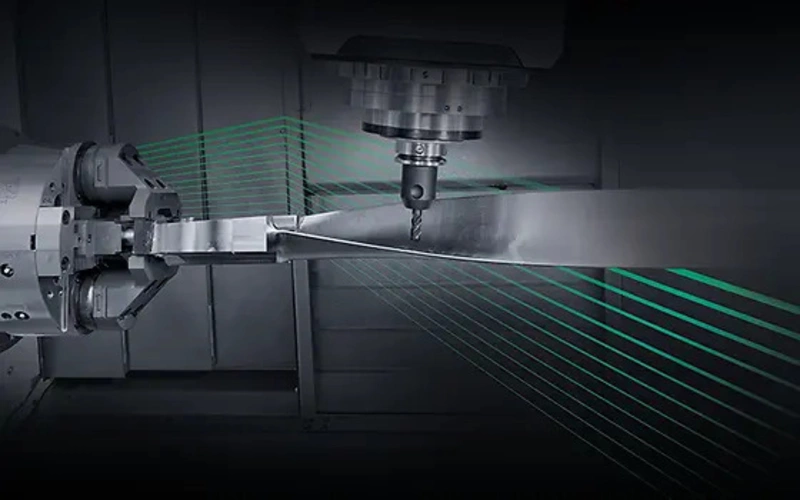

- 5-axis simultaneous machining as standard for more complex components and faster, more precise machining
- 6-sided complete machining with the same main and counter spindle for maximum flexibility in the machining strategy

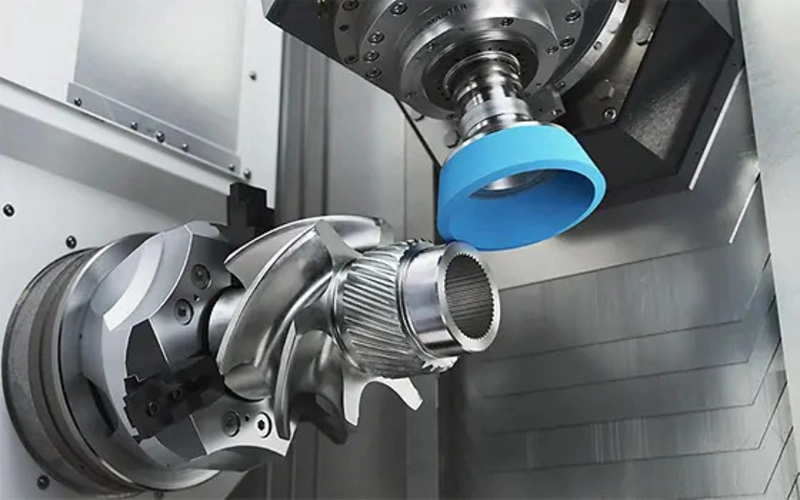

- 5-in-1 process integration: turning, milling, grinding - with integrated structure-borne noise sensor, gear manufacturing and measuring
Automation in detail
- Up to 200 tool positions (60 positions as standard) for tools up to ø 140 × 400 mm
- Tool loading parallel to machining time
- Unloading unit for impact-free unloading of workpieces up to 30 kg

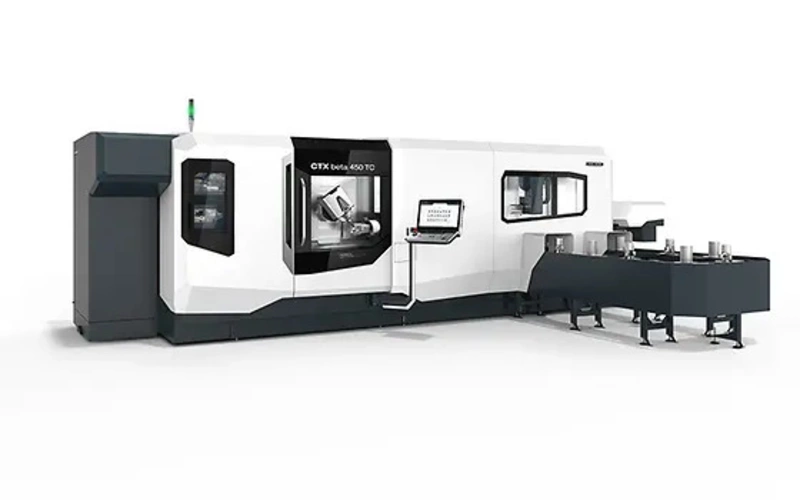

- Integrated gantry loader for workpieces up to 2 × 15 kg
- Robo2Go for small to medium batch sizes with intuitive operability
Further highlights
- compactMASTER turn-mill spindle with 15,000 rpm and 120 Nm as standard (optional 20,000 rpm)
- Main and counter spindle with up to 5,000 min\\\\\\\\-1 and a maximum of 36 kW/720 Nm
- ø76 or 102 mm bar capacity
- Workpieces up to ø500 x 1,100 mm
- Installation area of only 10 m²
videos
High-end 5-axis turning-milling machine CTX beta 450 TC in detail
