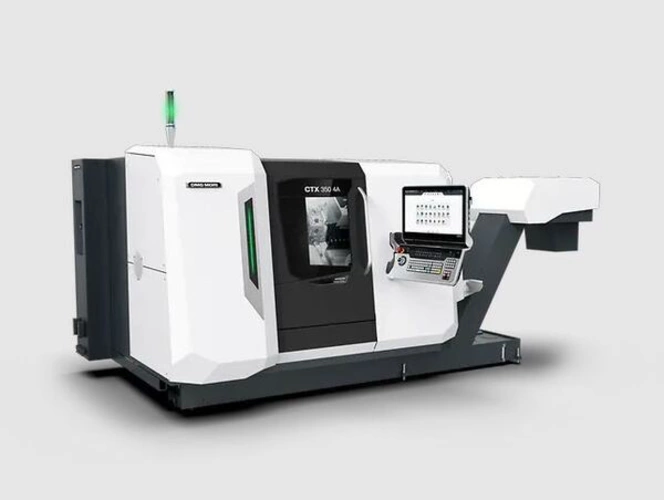

DMG MORI CTX 350 4A
0 EUR
General information
| 14.02.2025 |
| 101285 |
Search criteria
| 200 mm |
| 470 mm |
| 65 mm |
| 2 items |
| 16 items |
| 16 items |
| ja |
| ja |
| ja |
|
|
| DMG MORI Aktiengesellschaft |
further specifications
|
|
|
|
|
|
| 12000 rpm |
| 250 mm |
| 2730 mm |
| 2621 mm |
| 1870 mm |
| 5,5 t |
Contact us
Report ad
Description
Up to 28 tools, traverse X-Y-Z (mm) 185-100-495, Counter spindle and Y-axis,
Production type: One-off production, small series (< 50), medium series (50 - 1000), large series (1000 - 100,000)
Materials: aluminium, steel, titanium
Highlights
-
6-sided complete machining of workpieces up to ø 200 × 100 mm and +/- 50 mm Y-axis on 8.1 m2
-
Spindles up to 6,000 rpm or up to 171 Nm, bar machining up to ø 65 mm
-
Upper turret and lower turret up to 12,000 rpm or 17 Nm // 12 tool stations // VDI 30
-
Upper turret up to 16 tool stations VDI 30
-
Optimum energy efficiency thanks to integrated synchronised spindle drives and inverters for all motor pumps
-
Various automation solutions, can also be retrofitted, e.g. with Robo2Go Turning
-
Integrated unloading device as standard
-
State-of-the-art CNC with CELOS X on SINUMERIK One or native FANUC 0i TFPlus
The CTX 350 4A is based on an FEM-optimised, high-quality, compact and torsion-resistant cast bed for the best rigidity and vibration damping, designed for a machine concept with two turrets.

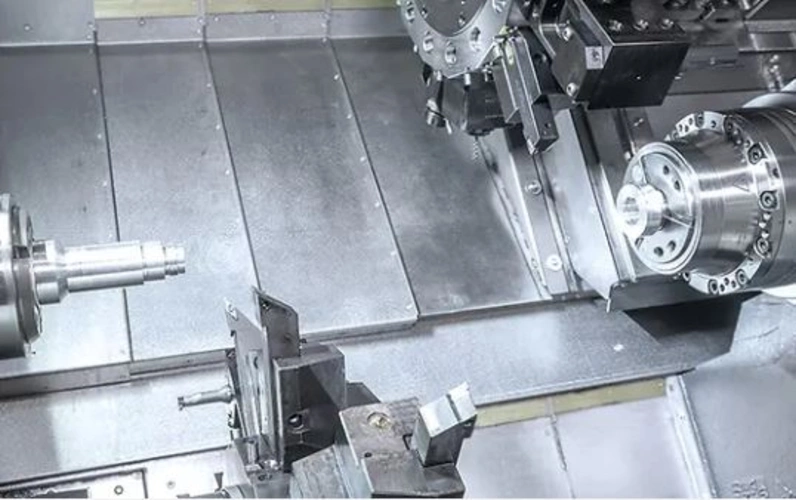

The design with four guideways enables collision-free movement of the top slide (X1-Z1 axis) and bottom slide (X2-Z2 axis) as well as the counter spindle. Metal covers in the work area with 45° inclination optimise chip fall and increase operational safety and machine service life.
High-quality recirculating ball screws and wide linear guides in the X1-Y1-Z1, X2-Z2 slides and the counter spindle support heavy-duty machining and guarantee machine dynamics that meet the highest production requirements.
