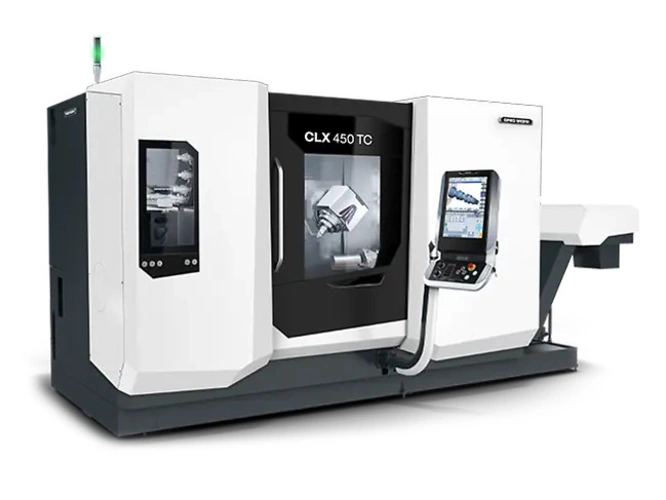

DMG MORI CLX 450 TC

Bookmark Write a note

Print page

General information

Creation date 05.02.2025
Ad-ID 101266

Workpiece diameter max. 400 mm
Workpiece length max. 1100 mm
Chuck diameter 325 mm
Bar capacity max. 65 mm
Counter spindle? yes
Y-axis? yes
(Turn-)mill spindle? yes
Tool interface (turn-)mill spindle [type] HSK-T63
Control (manufacturer) Siemens Sinumerik One
Machine manufacturer (list selection) DMG MORI Aktiengesellschaft

Traverse X-axis 750 mm
Traverse Y-axis 200 mm
Traverse Z-axis 1100 mm
Counter spindle speed max. 5000 rpm
Machine weight 9 t

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Highlights

The B-axis factor – added value compared to any turret lathe

Shortest setup times thanks to automatic tool change with 30 or optional 60 tools

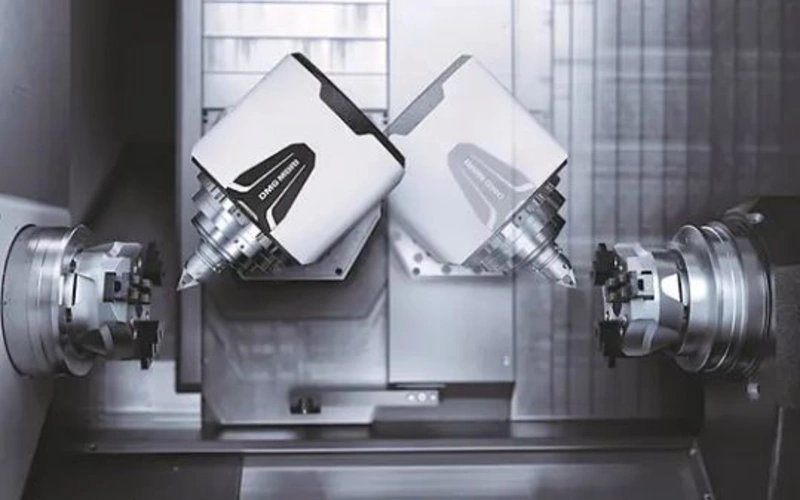

Eliminates the need for angle tools: B-axis with +-120° swivel angle and 0.001° resolution
Minimal downtime thanks to multi-tools and sister tools

6-sided complete machining with main and optional Counter spindle

Highest positioning accuracy and performance thanks to integrated spindle drives up to 5,000 rpm and 345 Nm as well as integrated C-axis (0.001°)
No driven tool holders necessary thanks to compactMASTER turn-mill spindle with 12,000 rpm and 90 Nm
Generous working space for components up to Ø400 mm x 1,100 mm

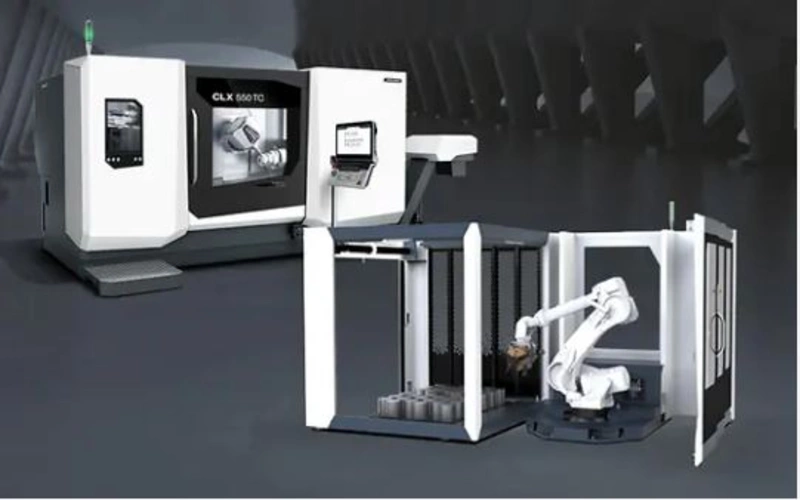

Automation
