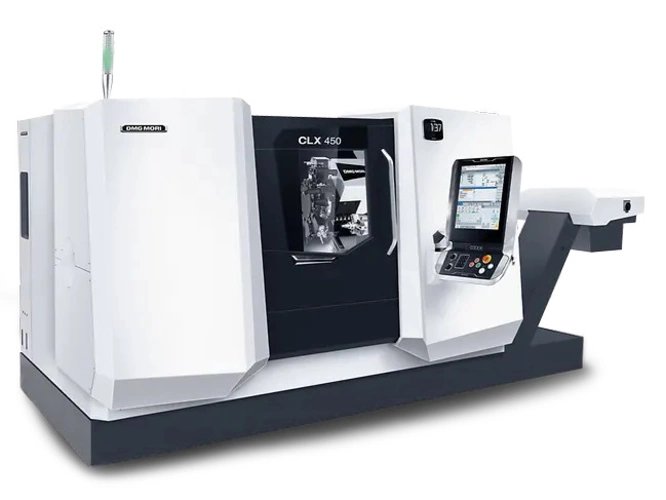

DMG MORI CLX 450

0 EUR

Bookmark Write a note

Print page

General information

Creation date 21.11.2024
Ad-ID 101235

Workpiece diameter max. 400 mm
Workpiece length max. 800 mm
Bar capacity max. 80 mm
Counter spindle? yes
Y-axis? yes
(Turn-)mill spindle? yes
Tool interface (turn-)mill spindle [type] VDI40
Control (manufacturer) Siemens Slimline
Machine manufacturer (list selection) DMG MORI EMEA Holding GmbH

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Highlights

6-sided complete machining of complex parts with Y-axis

Highly dynamic spindle drive with 25.5 kW (40% DC) and 426 Nm (40% DC) and a maximum speed of up to 4000 rpm
6-sided complete machining by Counter spindle with integrated spindle motor, speed up to 5,000 rpm / 14 kW (40% DC) / 192 Nm (40% DC)
Y-axis with a travel range of ± 60 mm for improved milling, e.g., for complete surface machining

Greater machining efficiency thanks to a bar loader

Standard bar passage ø80 mm
Optional workpiece removal device for parts up to ø80 x 200 mm and max. 4 kg
Optional automation interface according to DMG MORI standard, compatible with most bar feeders

Compact design with a large working area for machining customer-specific parts

NEW: IoTconnector for digitized and networked production processes

DMG MORI NETservice and MESSENGER are preinstalled
Preconfigured specifically for your machine before delivery
Integrated firewall with automatic updates ensures the highest possible protection

Video:

CLX 450 // Machining (V6) - DMG MORI Media

Link to machine tool: CLX 450
