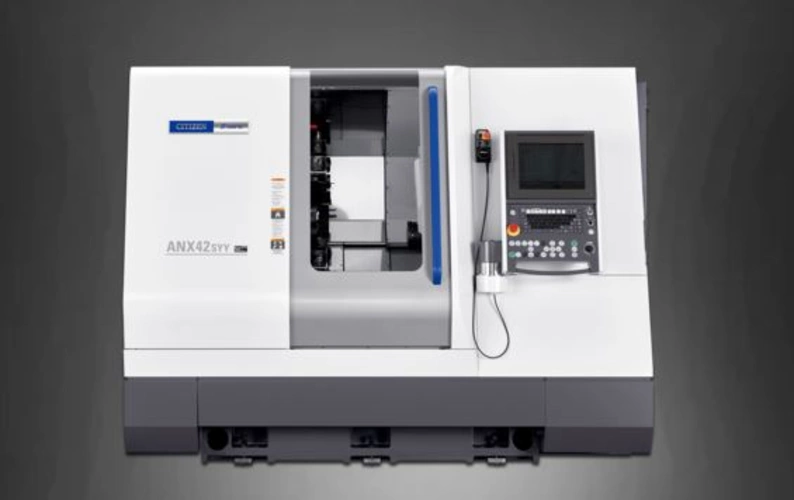

Citizen Miyano ANX-42SYY

73728 Esslingen am Neckar

0 EUR

Erstellungsdatum:

Bookmark Write a note

Print page

General information

Place Mettinger Straße 11, 73728 Esslingen am Neckar
Creation date 17.12.2024
Ad-ID 101245

Search criteria

Turning diameter max. 200 mm
Turning length max. 430 mm
Bar capacity max. 42 mm
Distance between spindles 690 mm
Number of turrets [items] 2 Piece
Number of tool stations, not live, max. [items] 24 items
Number of tool stations, live, max. [items] 24 items
Control (manufacturer) Fanuc 31i-B
Machine manufacturer (list selection) Citizen Machinery Europe GmbH

further specifications

Main spindle power max. 11.0 kW
Counter spindle speed max. 6000 rpm
Counter spindle power max. 11.0 kW
Turret speed max. 6000 rpm
Turret power max. 2.2 kW
Turret torque max. 20 Nm
Chuck diameter 165 mm

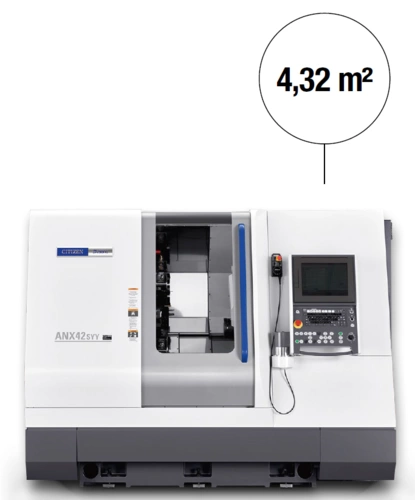

Installation length 2650 mm
Installation width 1630 mm
Installation height 1925 mm
Machine weight 6,2 t

Contact us

First name *

Surname *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Report ad

Reason *

E-mail address *

Your message *

The personal data you provide will be forwarded directly to the provider for the purpose of establishing contact. It will not be stored by us.

Notes on privacy policy

Description

LFV technology for oscillating machining, Turning diameter up to 200 mm, Turning lenght up to 430 mm, Turret programmable axes Z1 / X1 / Y1, Traverse range Y-axis 70 mm

ANX turret lathe

With its many new functions, the Citizen Miyano ANX-42SYY heralds a new era in the field of turret lathes. Now, for the first time, a Miyano turret lathe is equipped with LFV technology for oscillating cutting. This means that the entanglement of chips, which has caused problems for many years, is now a thing of the past.

Another highlight is the control panel with the new HMI (human-machine interface). Operation is much simpler, while at the same time identical operating sequences are guaranteed for users who work with Miyano and Cincom machines.

The Citizen Miyano ANX-42SYY is equipped with two spindles, two turrets and two Y-axes. Its rapid traverse speed has been increased by linear guides on all axes. The spindles each have an integrated motor, which shortens acceleration and deceleration times and improves overall response behaviour.

Advantages
