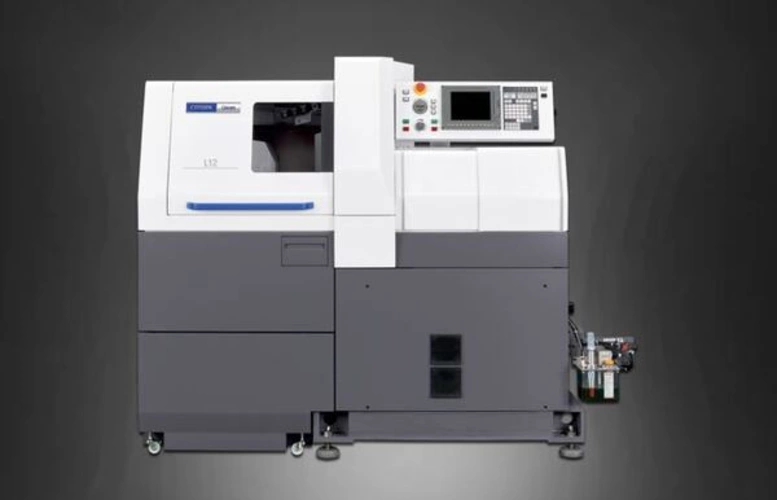

Citizen Cincom L12-2M10
- Erstellungsdatum:
General information
| Mettinger Straße 11, 73728 Esslingen am Neckar |
| 17.12.2024 |
| 101247 |
Search criteria
| 135 mm |
| 16 mm |
| 17 items |
|
| Citizen Machinery Europe GmbH |
further specifications
| 1840 mm |
| 970 mm |
| 1710 mm |
| 2,2 t |
Contact us
Report ad
Description
6 + 2 axes, bar capacity up to 16 mm, Turning lenght up to 135 mm, Y2 axis for extended functionality, modular tool system
Machining of workpieces with small diameters. With or without guide bush and high-speed spindle with 15,000 rpm.
On the Citizen Cincom L12-2M10, the guide bush can be fitted and removed in less than 30 minutes, allowing the machine to be customised to the specific workpiece requirements. This automatic turning machine performs two tasks that would normally require two machines and can machine both long and short workpieces equally effectively.
The Cincom L12-2M10 also offers uncompromising power for high-speed machining of small diameter parts. The high-speed main spindle with 15,000 rpm and driven tools with a Speed of 10,000 rpm ensure shorter cycle times.
Advantages
- The new L12-2M10 model has an additional Y-axis.
- Versatile tooling in the vertical holder.
- Higher tool loading

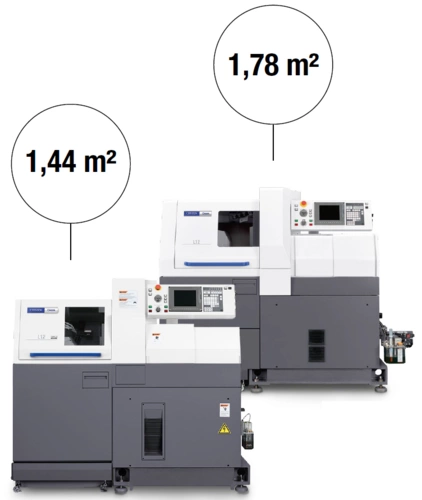

- Small and compact
- Available with LFV technology
Special features
- Conversion to machining with or without guide bush in approx. 30 minutes
- Quick to read, intuitive screen display
Options
- Wide range of tools in the holder for back machining
- Chip conveyor
- Loading magazine
- New machine can also be equipped with a laser system
