Bumotec 191neo
0 EUR
- Erstellungsdatum:
General information
| 31.10.2025 |
| 101769 |
Search criteria
| 7 Items |
| 410 mm |
| 200 mm |
| 400 mm |
|
|
|
| StarragTornos Group AG |
further specifications
| 10,4 m/s2 |
| 50-50-50 m/min |
| 4 s |
| 30 Items |
| 40 mm |
| 120 mm |
| 1,2 kg |
|
|
|
| 4,5 t |
Contact us
Report ad
Description

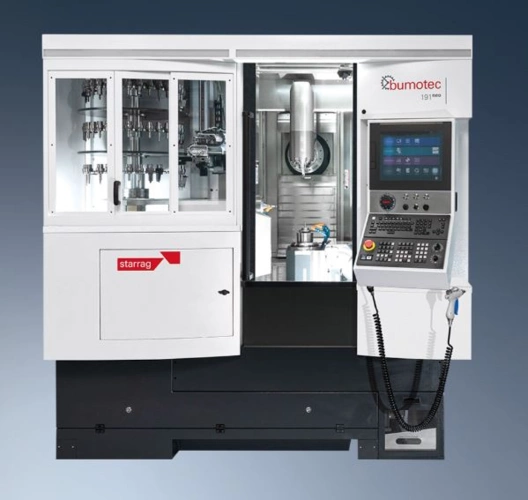

High-precision multi-task machining center
With its extreme stability in production and minimal operator intervention, the 191neo offers impressive productivity. Its responsive tool changer, the high torque of the Starrag Mill spindle, and its thermal properties, which have been adopted from the original s191 model, ensure that the programmed production speed is maintained and high surface qualities are achieved regardless of the material and complexity of the workpiece.
5 simultaneous axes, optionally up to 7 axes and 3 spindles, bar capacity max. 65 mm, tool stock 30/60/90, optional W-axis with travel range 360 mm and Rapid linear traverse 40 m/min
Overview
-
Complete machining solution
-
5 simultaneous axes
-
Up to 7 axes and 3 spindles
-
From bars or blanks
-
Bar capacity Ø 42/50/65 mm
-
New generation of linear motors with higher efficiency
-
Unproductive downtime is significantly reduced
-
New intuitive touchscreen HMI with Windows-based PC
-
1 machine platform - 12 configurations

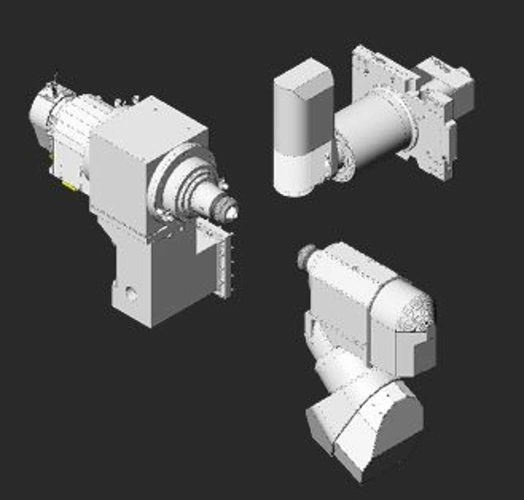

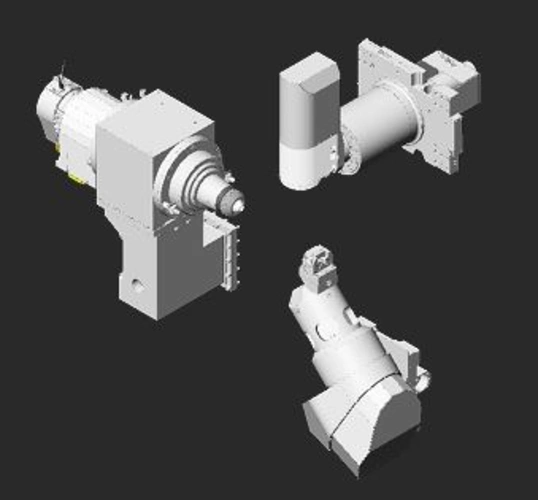

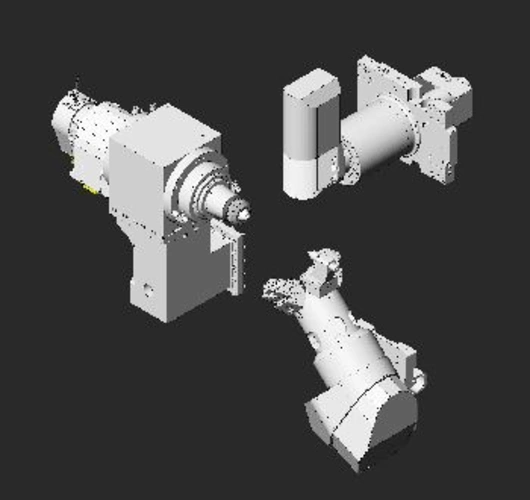

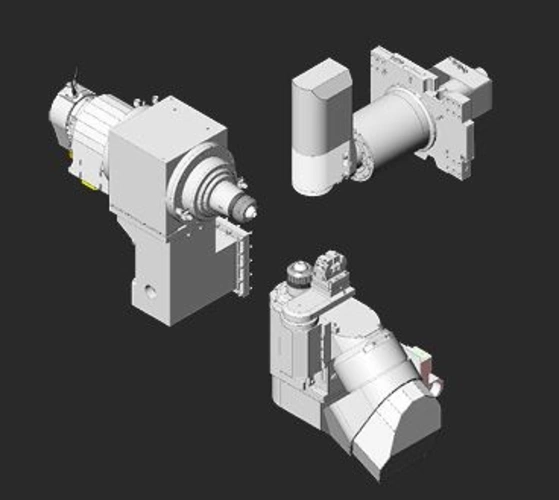

Axis configuration
(see images)
With its extreme stability in production and minimal operator intervention, the 191neo offers impressive productivity.
-
Production from bars or blanks
-
Up to 90 tools
-
Peripheral systems include high-pressure unit, chip conveyor, and bar loader
R – Counterspindle
Two-position counter spindle (horizontal and vertical)
P – Clamping device (vice)
Return unit with 1 to 3 positions (option -P/PRM)
RP – Combined counterspindle
Return unit for machining a sixth surface (only for milling)
PRM – Clamping device (multiple reworking)
Return unit with 1 to 3 positions (option -P/PRM)
